2 elements 20 meter yagi for 9W2KRZ

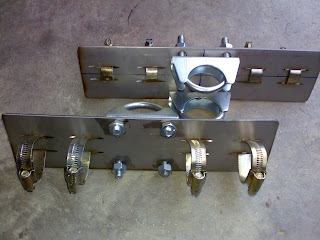

This is the first part , The element holder ,using stainless steel plate.
The most difficult part of this antenna.

second part is cut the length of the aluminum tube.

Do you notice that the boom has join with 4 screw ?
Actually this ant. is for portable use.
so I need to cut the length to 1.5meter.
total length is 2.5meter when the boom has joined.

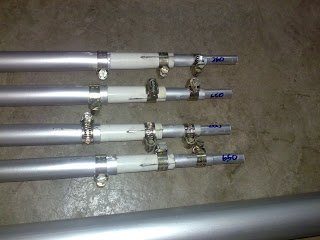

Telescopic type elements.
for easy setup and tune.

Everything has done and wait for test.
stay tune......Hi Hi !
