Port Dickson Amateur Radio Club House



Hy-Gain TH-7DX Tri-bander
Hy-Gain VB-64DX 6M Mono Yagi
Hy-Gain 14element 2M Yagi
UHF 70cm Yagi


Birthday Boy (9W2BUG)




Japanese Magazine
Talk about Malaysian Amateur Radio story
and The Club House of PD !!
Picture tells all about ...

 The Shack





 IC-2KL 500w Liner AMP.

 Kenwood TS-450s

 MFJ 75 Amp PSU

 Ham-4 Digital rotator control unit .$$

IC-706MK2G

 Big IR vertical antenna.
6M-80M band.
 Antenna that wait for the second tower

Thanks Rabin for the drink and food for us !
hihi... (Jack Daniels)

Monday, December 06, 2010

Home Brew Morse Keyer .

video
Morse Code Keyer , Test by 9M2ZAK.
Got 2 contact S56 and V85SS on 40M with my Dal-NUT vertical antenna ..
keyer made by saw blade ,hi hi...

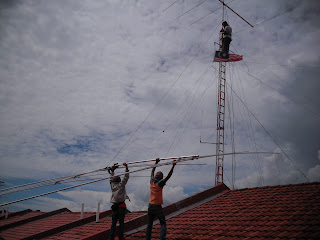

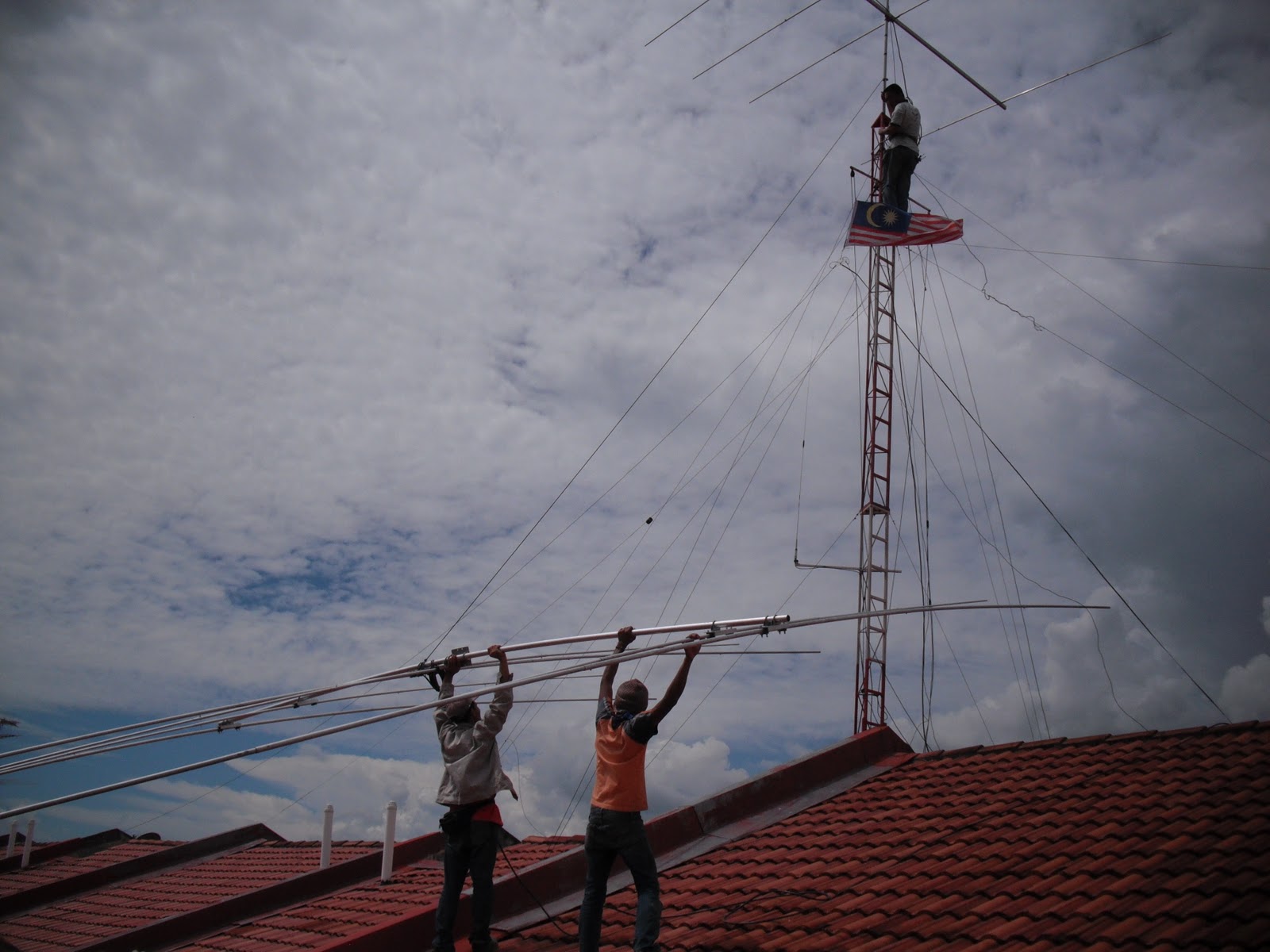

D6E1520 Installation (9M2ODY)



Friday, October 29, 2010

Wednesday, October 20, 2010

DV4080 HF VERTICAL 40M/80M DUAL BAND

Type : HF Vertical
Resonance Freq : 7.08MHz & 3.85MHz
SWR : <1.7
(tested on a Single Radial on each band not trim)
total height : 10m
freq : 40M and 80M
Power rating : 200W PEP Max

40M band Coil

 80M band coil and capacitor.


Sunday, October 17, 2010

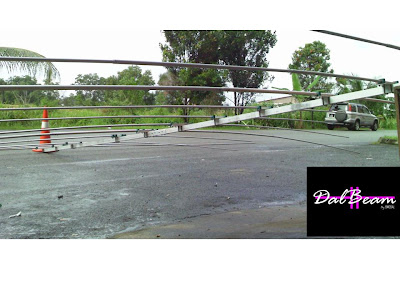

D3E20 3 element yagi for 20m band

Type : 3 element yagi
Resonance Freq : 20m band
Center Freq : 14.200 MHz
SWR : Less than 1:1.2
Gain : 5.35 dBd / 7.5 dBi
F/B Ratio : 25 dB
Weight : less than 15Kg
Boom Length : 5.6 meter




D1E1740 Dual-band Rotary Dipole.

Type of antenna : rotary dipole
Resonance Freq : 17m and 40m dual band
Center Freq : 7.070MHz and 18.100MHz
SWR: less than 1:1.2
Total weight : less than 5 Kg
Total Length : 15 meter (End to end)

The rotary dipole was
under the 4 element yagi ,
no guy wire needed .

Coil made from 3mm aluminium wire ,
13 uH per coil.


Saturday, August 28, 2010

D5E10 My current 10m band antenna .


5 element 10 meter band antenna.
Boom length : 7.5meter
Gain : 10.5 dbi
F/B : 27.6 db

D11E3 For 9M6TW

Send to : Sabah, Malaysia
Owner : 9M6TW

D7E3 for 9M2GET

Location : Perilis
 Owner : 9M2GET

Friday, August 20, 2010

2010 ILLW

Lighthouse Station at Bukit Segenting LightHouse, Batu Pahat, Johor.

We are curretly operating Lighthouse Station at Bukit Segenting LightHouse, Batu Pahat, Johor.
Coordinate: GPS: 01º47.5N, 102º 53.4E.
ILLW Registration Number: WMA002
Event Date: 16:01UTC 13th AUG'10 till 04:00UTC 15th AUG'10.
All contacted station will receive our QSL card via post (snail mail)
Summary of Contacts:
13th AUG'10 = 26 Stations (OPR: 9W2BUG, 9W2DAL, 9W2JLG)
14th AUG'10 = 285 and counting (OPR: 9M2ZAK, 9W2DAL, 9W2JLG, 9W2BUG)
We are QRV on 14.270 SSB Phone Antenna pointing towards Europe. CQ us. Thx.

QSL via:
JAYAKANTHAN, 9W2BUG
(ILLW WMA002 COORDINATOR)
20, JALAN PERMAS 3/6,
BANDAR BARU PERMAS JAYA,
81750, PLENTONG, JOHOR
WEST MALAYSIA.
Operators are from Communication Rovers ScoutsJB
